TST-115-01-L-D

Samtec, Inc.

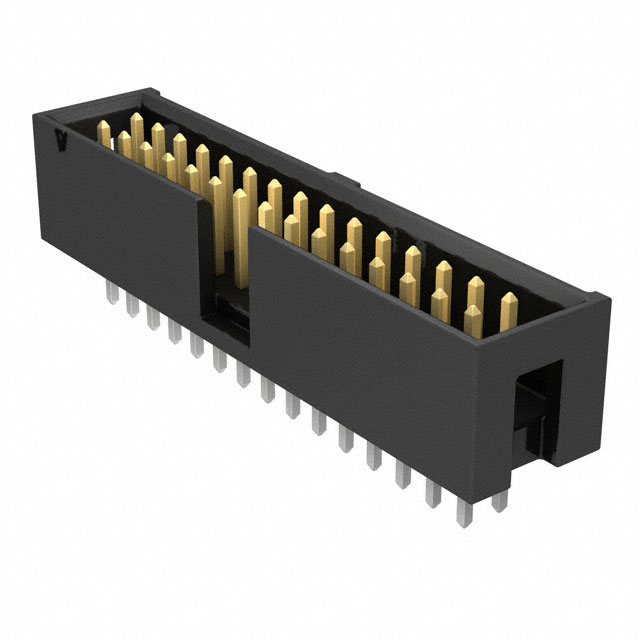

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TST-115-01-L-D
Manufacturer/Brand:	Samtec, Inc.
Product description	SHOUDED .025 SQ STRIPS
Datasheets:	1.TST-115-01-L-D.pdf 2.TST-115-01-L-D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28198 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28198 pcs

Reference Price (In US Dollars)

1 pcs: $1.058

10 pcs: $1.014

100 pcs: $0.845

500 pcs: $0.719

1000 pcs: $0.613

5000 pcs: $0.549

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.058

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TST-115-01-L-D

Part Number	TST-115-01-L-D	Manufacturer	Samtec, Inc.
Description	SHOUDED .025 SQ STRIPS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28198 pcs	Data sheet	1.TST-115-01-L-D.pdf 2.TST-115-01-L-D.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Flex Stack, TST	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.480" (12.19mm)	Other Names	SAM13029 TST-115-01-L-D-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.350" (8.89mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 30 position 0.100" (2.54mm)
Current Rating	3.4A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.115" (2.92mm)	Contact Length - Mating	0.250" (6.35mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
