Samtec, Inc.

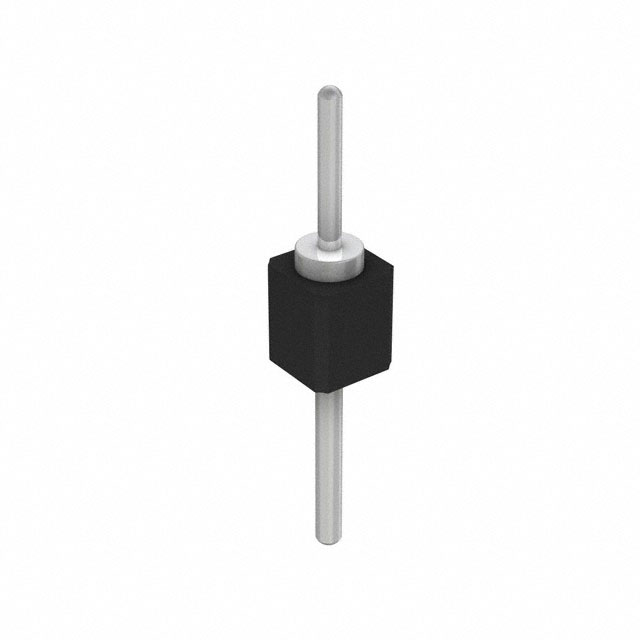

| Part Number | TS-101-T-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .100" 1POS TIN PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147323 pcs | Data sheet | 1.TS-101-T-A.pdf2.TS-101-T-A.pdf3.TS-101-T-A.pdf4.TS-101-T-A.pdf5.TS-101-T-A.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | TS | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | 0.477" (12.12mm) | Other Names | SAM1112-01 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 1 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.156" (3.96mm) | Contact Length - Mating | 0.166" (4.22mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
