TMMH-112-01-F-D-RA-ES

Samtec, Inc.

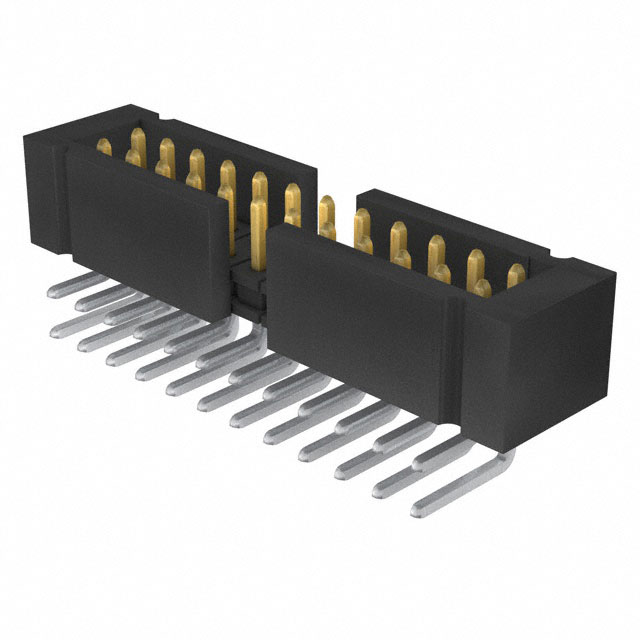

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMMH-112-01-F-D-RA-ES
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADR 24POS DBL 2MM T/H
Datasheets:	1.TMMH-112-01-F-D-RA-ES.pdf 2.TMMH-112-01-F-D-RA-ES.pdf 3.TMMH-112-01-F-D-RA-ES.pdf 4.TMMH-112-01-F-D-RA-ES.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23230 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23230 pcs

Reference Price (In US Dollars)

1 pcs: $1.373

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.373

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMMH-112-01-F-D-RA-ES

Part Number	TMMH-112-01-F-D-RA-ES	Manufacturer	Samtec, Inc.
Description	CONN HEADR 24POS DBL 2MM T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23230 pcs	Data sheet	1.TMMH-112-01-F-D-RA-ES.pdf 2.TMMH-112-01-F-D-RA-ES.pdf 3.TMMH-112-01-F-D-RA-ES.pdf 4.TMMH-112-01-F-D-RA-ES.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TMMH	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Operating Temperature	-55°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	24	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	-
Mated Stacking Heights	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.250" (6.35mm)
Insulation Color	Black	Ingress Protection	-
Features	End Shrouds	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.103" (2.62mm)
Contact Length - Mating	0.126" (3.20mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	3.00µin (0.076µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Cuttable
Applications	-
