TMMH-103-05-G-D-006

Samtec, Inc.

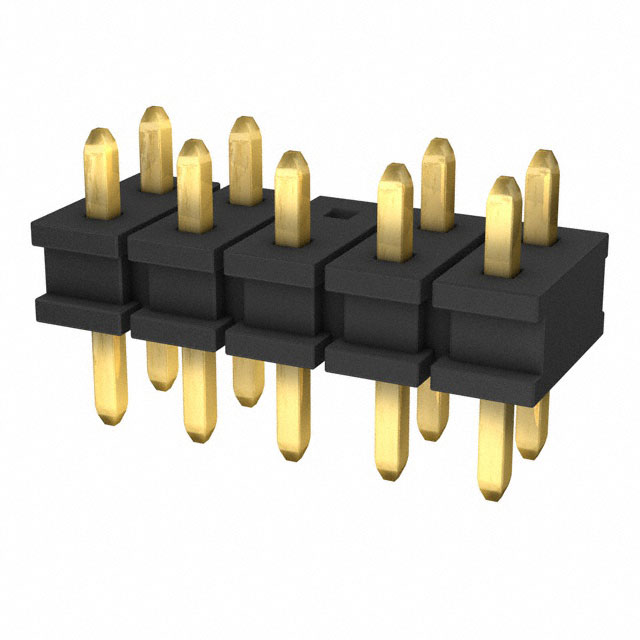

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMMH-103-05-G-D-006
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 6POS DBL 2MM T/H
Datasheets:	1.TMMH-103-05-G-D-006.pdf 2.TMMH-103-05-G-D-006.pdf 3.TMMH-103-05-G-D-006.pdf 4.TMMH-103-05-G-D-006.pdf 5.TMMH-103-05-G-D-006.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74236 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74236 pcs

Reference Price (In US Dollars)

1 pcs: $0.455

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.455

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMMH-103-05-G-D-006

Part Number	TMMH-103-05-G-D-006	Manufacturer	Samtec, Inc.
Description	CONN HEADER 6POS DBL 2MM T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74236 pcs	Data sheet	1.TMMH-103-05-G-D-006.pdf 2.TMMH-103-05-G-D-006.pdf 3.TMMH-103-05-G-D-006.pdf 4.TMMH-103-05-G-D-006.pdf 5.TMMH-103-05-G-D-006.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TMMH	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.234" (5.94mm)	Operating Temperature	-55°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	5
Number of Positions	6	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	-
Mated Stacking Heights	-	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.079" (2.00mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 6 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.090" (2.29mm)	Contact Length - Mating	0.065" (1.65mm)
Contact Finish Thickness - Post	3.00µin (0.076µm)	Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header, Cuttable	Applications	-
