TMM-120-01-L-D-RA

Samtec, Inc.

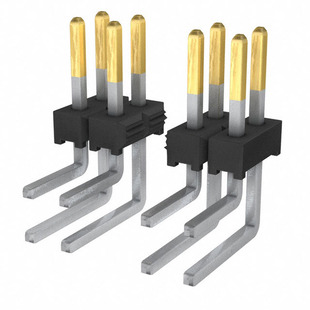

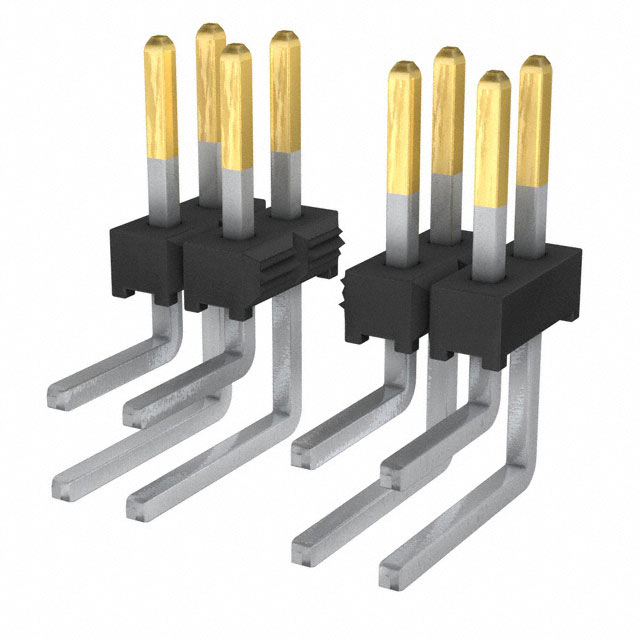

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMM-120-01-L-D-RA
Manufacturer/Brand:	Samtec, Inc.
Product description	2MM TERMINAL STRIP
Datasheets:	1.TMM-120-01-L-D-RA.pdf 2.TMM-120-01-L-D-RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20281 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20281 pcs

Reference Price (In US Dollars)

1 pcs: $1.582

10 pcs: $1.517

100 pcs: $1.264

500 pcs: $1.075

1000 pcs: $0.917

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.582

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMM-120-01-L-D-RA

Part Number	TMM-120-01-L-D-RA	Manufacturer	Samtec, Inc.
Description	2MM TERMINAL STRIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20281 pcs	Data sheet	1.TMM-120-01-L-D-RA.pdf 2.TMM-120-01-L-D-RA.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TMM	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	SAM12989 TMM-120-01-L-D-RA-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.155" (3.94mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm)	Current Rating	3.2A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.126" (3.20mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
