TMM-103-03-G-S

Samtec, Inc.

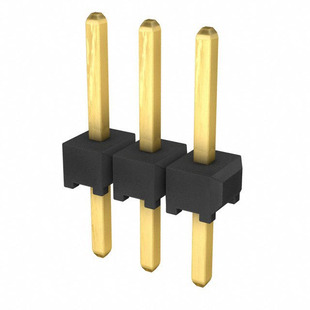

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMM-103-03-G-S
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 3POS .079" T/H
Datasheets:	1.TMM-103-03-G-S.pdf 2.TMM-103-03-G-S.pdf 3.TMM-103-03-G-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	143909 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 143909 pcs

Reference Price (In US Dollars)

1 pcs: $0.206

10 pcs: $0.192

100 pcs: $0.147

500 pcs: $0.128

1000 pcs: $0.106

5000 pcs: $0.093

10000 pcs: $0.086

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.206

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMM-103-03-G-S

Part Number	TMM-103-03-G-S	Manufacturer	Samtec, Inc.
Description	CONN HEADER 3POS .079" T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	143909 pcs	Data sheet	1.TMM-103-03-G-S.pdf 2.TMM-103-03-G-S.pdf 3.TMM-103-03-G-S.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TMM	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	0.323" (8.20mm)	Other Names	Q8506524 SAM10770 TMM-103-03-G-S-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.059" (1.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 3 position 0.079" (2.00mm)	Current Rating	3.2A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.106" (2.69mm)
Contact Length - Mating	0.157" (4.00mm)	Contact Finish Thickness - Post	3.00µin (0.076µm)
Contact Finish Thickness - Mating	20.0µin (0.51µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
