TFML-125-01-S-D-RA

Samtec, Inc.

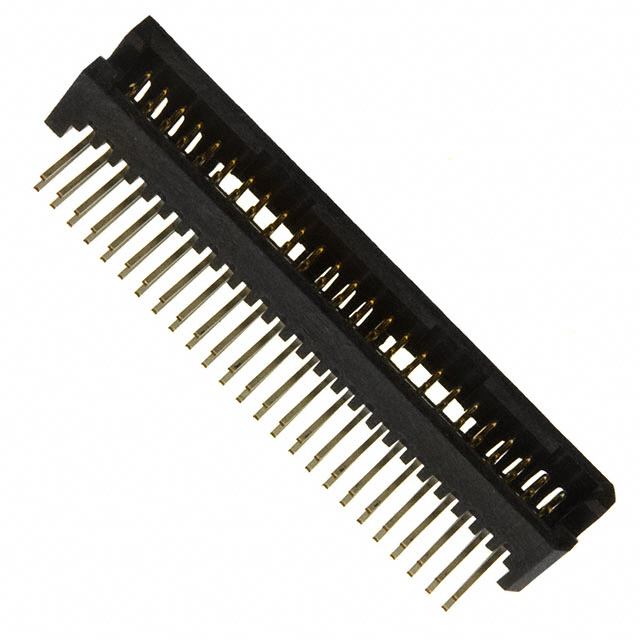

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TFML-125-01-S-D-RA
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADR .05" 50POS DL T/H R/A
Datasheets:	1.TFML-125-01-S-D-RA.pdf 2.TFML-125-01-S-D-RA.pdf 3.TFML-125-01-S-D-RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8249 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8249 pcs

Reference Price (In US Dollars)

1 pcs: $3.663

16 pcs: $3.505

112 pcs: $2.947

512 pcs: $2.469

1008 pcs: $2.183

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.663

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TFML-125-01-S-D-RA

Part Number	TFML-125-01-S-D-RA	Manufacturer	Samtec, Inc.
Description	CONN HEADR .05" 50POS DL T/H R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8249 pcs	Data sheet	1.TFML-125-01-S-D-RA.pdf 2.TFML-125-01-S-D-RA.pdf 3.TFML-125-01-S-D-RA.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Tiger Eye™ TFML	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	SAM8269 TFML12501SDRA
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	50
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.225" (5.72mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole, Right Angle 50 position 0.050" (1.27mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.075" (1.91mm)	Contact Length - Mating	0.134" (3.39mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
