T2M-105-01-L-D-RA-WT

Samtec, Inc.Samtec, Inc.

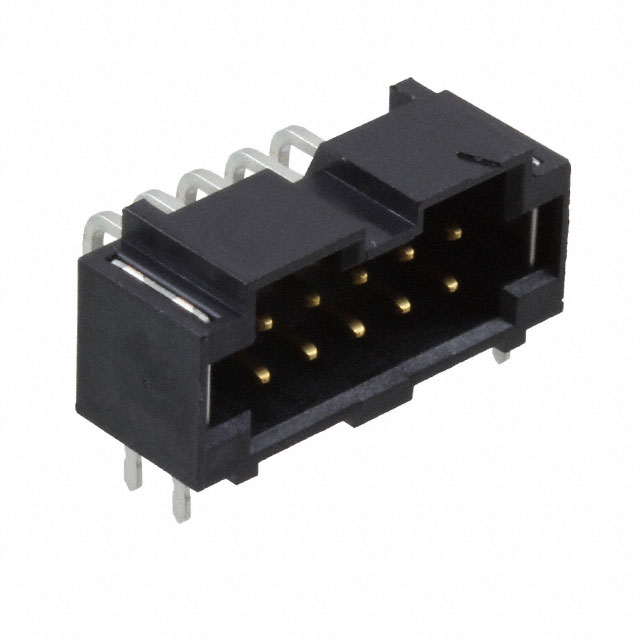

T2M-105-01-L-D-RA-WT Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: T2M-105-01-L-D-RA-WT
Manufacturer/Brand: Samtec, Inc.
Product description T2M 2MM SHROUDED TERMINAL STRIP
Datasheets: 1.T2M-105-01-L-D-RA-WT.pdf2.T2M-105-01-L-D-RA-WT.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 25939 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 25939 pcs
Reference Price (In US Dollars)
1 pcs
$1.319
36 pcs
$1.16
108 pcs
$1.055
504 pcs
$0.897
1008 pcs
$0.765
5004 pcs
$0.686
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.319

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of T2M-105-01-L-D-RA-WT

Part Number T2M-105-01-L-D-RA-WT Manufacturer Samtec, Inc.
Description T2M 2MM SHROUDED TERMINAL STRIP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 25939 pcs Data sheet 1.T2M-105-01-L-D-RA-WT.pdf2.T2M-105-01-L-D-RA-WT.pdf
Voltage Rating - Termination Solder
Style Board to Board or Cable Shrouding Shrouded - 4 Wall
Series Tiger Eye™ T2M Row Spacing - Mating 0.079" (2.00mm)
Pitch - Mating 0.079" (2.00mm) Packaging Tube
Overall Contact Length - Other Names SAM10050
Operating Temperature -55°C ~ 125°C Number of Rows 2
Number of Positions Loaded All Number of Positions 10
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating - Mated Stacking Heights -
Manufacturer Standard Lead Time 3 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Liquid Crystal Polymer (LCP) Insulation Height 0.293" (7.44mm)
Insulation Color Black Ingress Protection -
Features Solder Retention Fastening Type Push-Pull
Detailed Description Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm) Current Rating 3.8A
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.090" (2.29mm)
Contact Length - Mating - Contact Finish Thickness - Post -
Contact Finish Thickness - Mating 10.0µin (0.25µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header
Applications -
