Samtec, Inc.

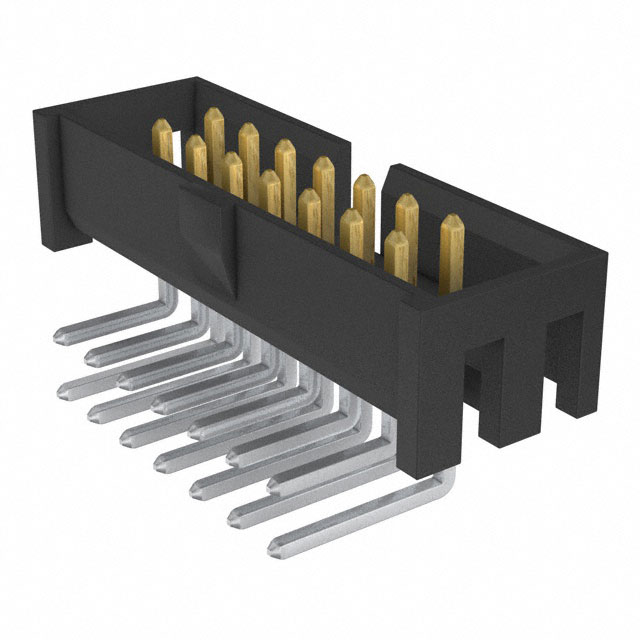

| Part Number | STMM-107-02-S-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM TERMINAL STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17105 pcs | Data sheet | 1.STMM-107-02-S-D-RA.pdf2.STMM-107-02-S-D-RA.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Flex Stack, STMM | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | SAM11971 STMM-107-02-S-D-RA-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.236" (6.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
