Samtec, Inc.

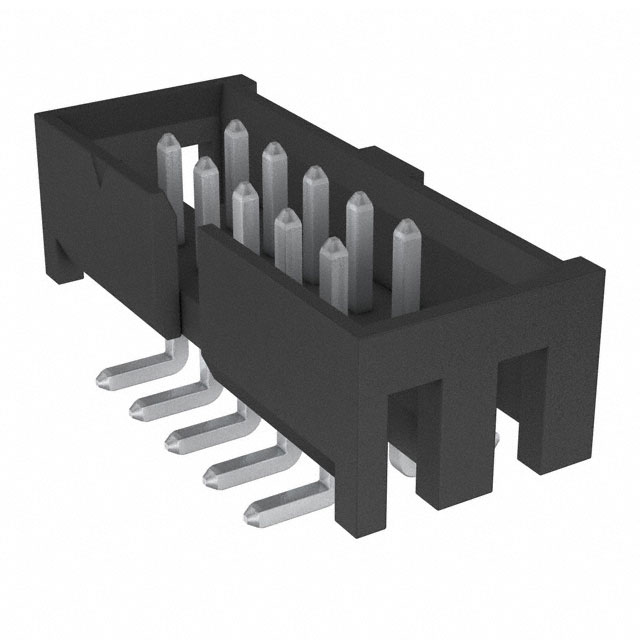

| Part Number | STMM-105-02-T-D-SM-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM TERMINAL STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31040 pcs | Data sheet | 1.STMM-105-02-T-D-SM-K.pdf2.STMM-105-02-T-D-SM-K.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Flex Stack, STMM | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | SAM11968 STMM-105-02-T-D-SM-K-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.190" (4.83mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
