Samtec, Inc.

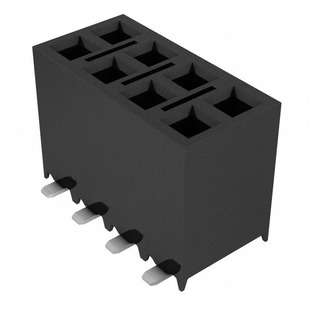

| Part Number | SSM-104-T-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 8POS DUAL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60370 pcs | Data sheet | 1.SSM-104-T-DV.pdf2.SSM-104-T-DV.pdf |
| Voltage Rating | 405VAC, 572VDC | Termination | Solder |
| Style | Board to Board or Cable | Series | SSM |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | SAM11892 SSM-104-T-DV-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle, Pass Through Connector Surface Mount |
| Current Rating | 5.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Pass Through |
| Applications | - |
