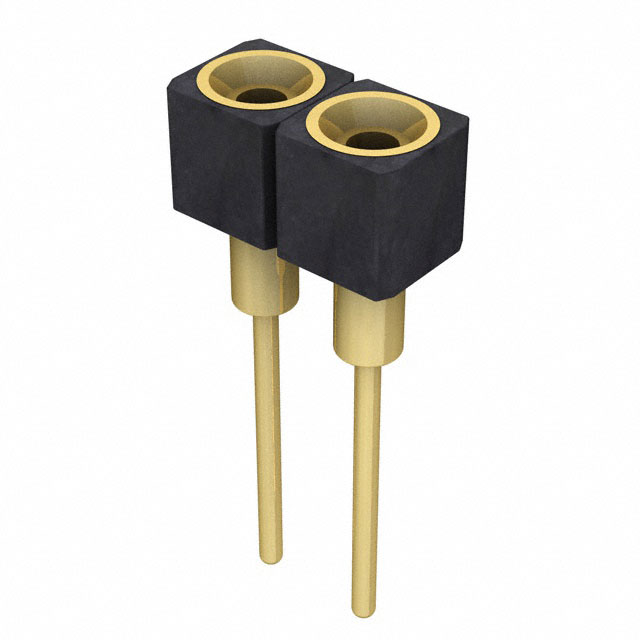

Samtec, Inc.
| Part Number | SS-102-G-1C | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECPT 2POS .100" T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88186 pcs | Data sheet | 1.SS-102-G-1C.pdf2.SS-102-G-1C.pdf3.SS-102-G-1C.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SS |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 2 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.260" (6.60mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
