Samtec, Inc.

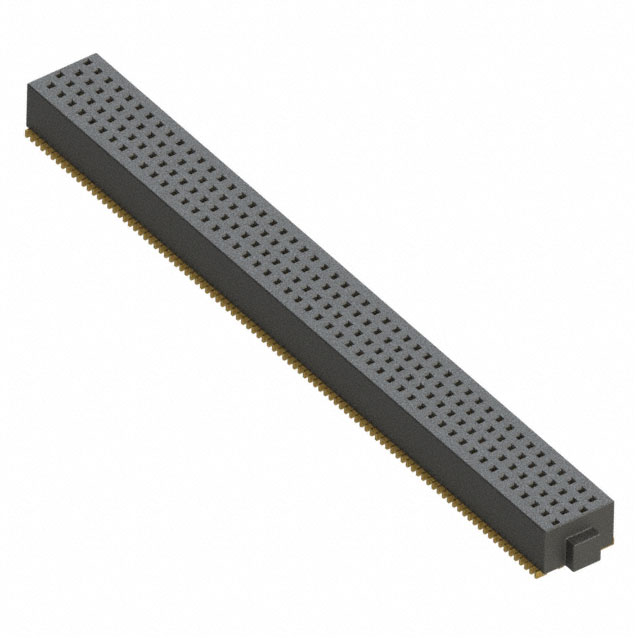

| Part Number | SOLC-150-02-S-Q | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .05" 50X4POS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3985 pcs | Data sheet | 1.SOLC-150-02-S-Q.pdf2.SOLC-150-02-S-Q.pdf3.SOLC-150-02-S-Q.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | FOURRAY™ SOLC |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | SAM8499 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 200 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.160" (4.06mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 200 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 2.4A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
