SMB5-J-P-H-RA-TH1

Samtec, Inc.

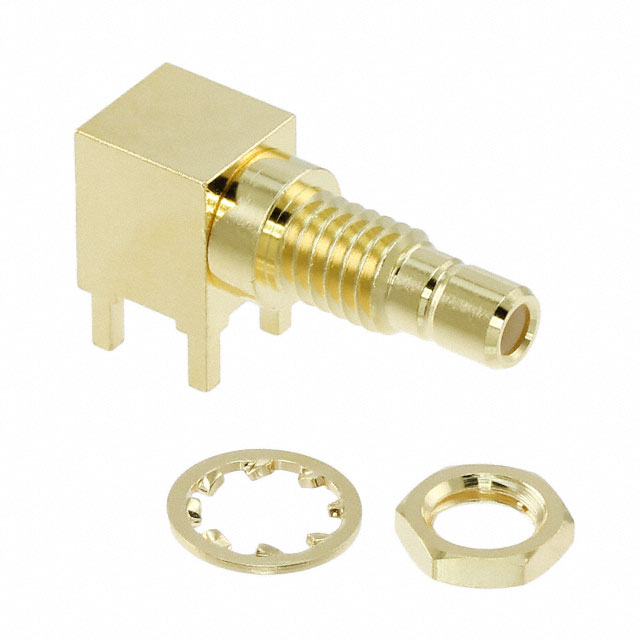

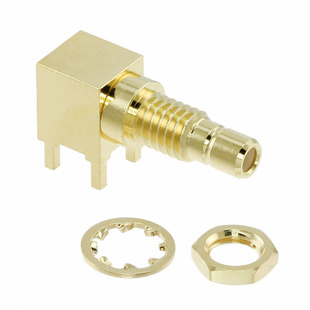

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SMB5-J-P-H-RA-TH1
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN SMB JACK R/A 50 OHM SOLDER
Datasheets:	1.SMB5-J-P-H-RA-TH1.pdf 2.SMB5-J-P-H-RA-TH1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6745 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6745 pcs

Reference Price (In US Dollars)

1 pcs: $4.729

10 pcs: $4.299

25 pcs: $4.191

50 pcs: $3.869

100 pcs: $3.654

250 pcs: $3.332

500 pcs: $3.117

1000 pcs: $2.859

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.729

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SMB5-J-P-H-RA-TH1

Part Number	SMB5-J-P-H-RA-TH1	Manufacturer	Samtec, Inc.
Description	CONN SMB JACK R/A 50 OHM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6745 pcs	Data sheet	1.SMB5-J-P-H-RA-TH1.pdf 2.SMB5-J-P-H-RA-TH1.pdf
Voltage Rating	250V	Shield Termination	Solder
Series	-	Packaging	Tray
Other Names	SAM9951	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance	50 Ohm	Housing Color	Gold
Frequency - Max	4GHz	Features	-
Fastening Type	Snap-On	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	SMB Connector Jack, Male Pin 50 Ohm Panel Mount, Through Hole, Right Angle Solder	Contact Termination	Solder
Connector Type	Jack, Male Pin	Connector Style	SMB
Center Contact Plating	Gold	Center Contact Material	Brass
Cable Group	-	Body Material	Brass
Body Finish	Gold
