SHF-125-01-L-D-RA

Samtec, Inc.

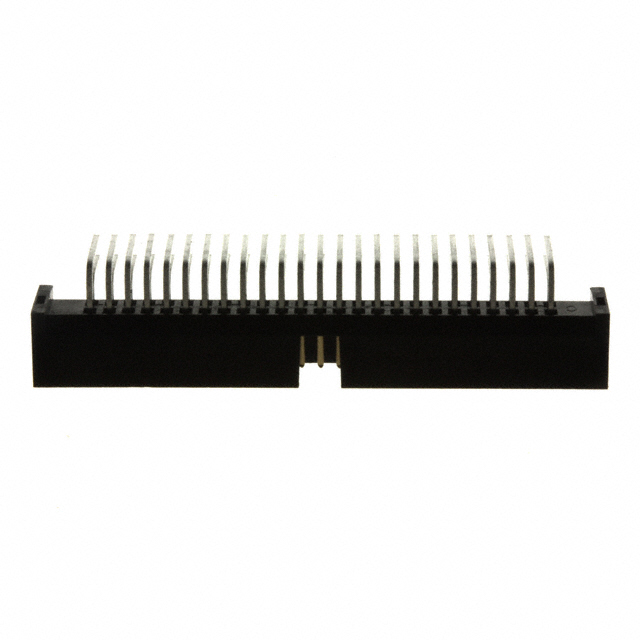

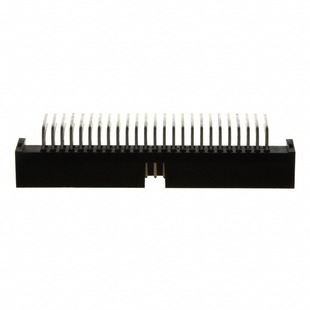

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SHF-125-01-L-D-RA
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER .05" 50POS DUAL
Datasheets:	1.SHF-125-01-L-D-RA.pdf 2.SHF-125-01-L-D-RA.pdf 3.SHF-125-01-L-D-RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15420 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15420 pcs

Reference Price (In US Dollars)

1 pcs: $2.435

15 pcs: $2.335

105 pcs: $1.929

510 pcs: $1.624

1005 pcs: $1.421

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.435

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SHF-125-01-L-D-RA

Part Number	SHF-125-01-L-D-RA	Manufacturer	Samtec, Inc.
Description	CONN HEADER .05" 50POS DUAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15420 pcs	Data sheet	1.SHF-125-01-L-D-RA.pdf 2.SHF-125-01-L-D-RA.pdf 3.SHF-125-01-L-D-RA.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SHF	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	Q4418177 SAM10714 SHF-125-01-L-D-RA-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	50
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.220" (5.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 50 position 0.050" (1.27mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.085" (2.16mm)
Contact Length - Mating	0.120" (3.05mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
