Samtec, Inc.

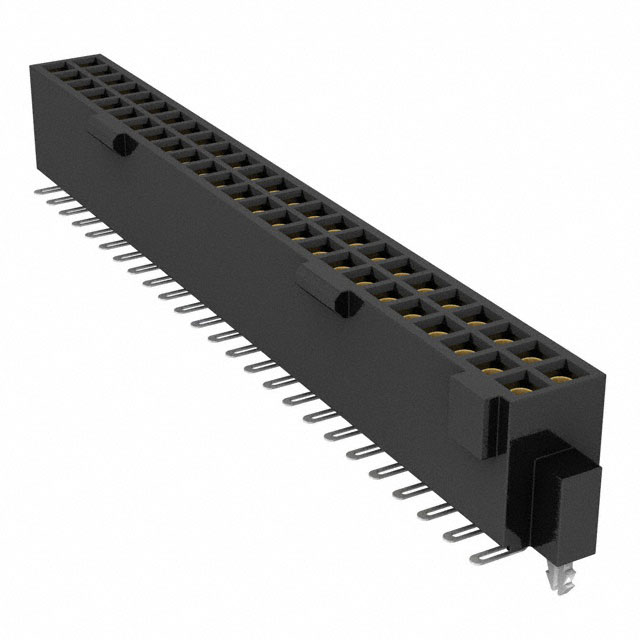

| Part Number | SFML-125-T2-S-D-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HEADER SOCKET SMD 50POS 1.27MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11973 pcs | Data sheet | 1.SFML-125-T2-S-D-LC.pdf2.SFML-125-T2-S-D-LC.pdf3.SFML-125-T2-S-D-LC.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | Tiger Eye™ SFML |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | Q4846963 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.185" (4.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | 50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
