Samtec, Inc.

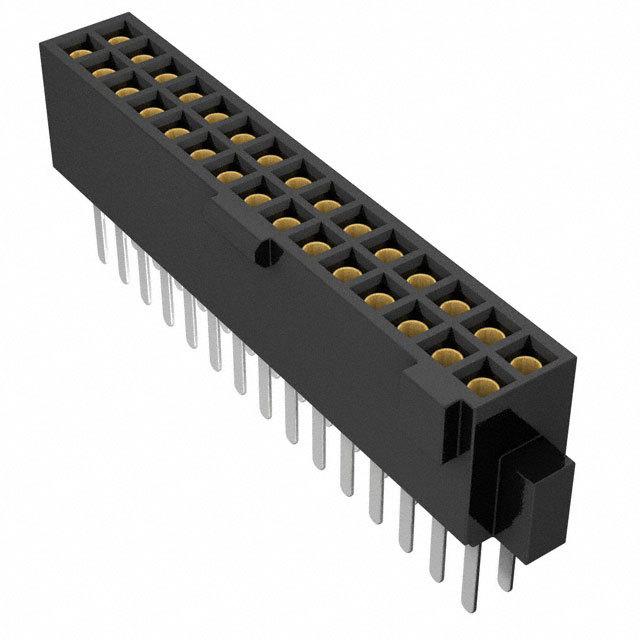

| Part Number | SFML-115-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECEPT 30POS 1.27MM GLD PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11475 pcs | Data sheet | 1.SFML-115-01-S-D.pdf2.SFML-115-01-S-D.pdf3.SFML-115-01-S-D.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | Tiger Eye™ SFML |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | SAM8711 SFML11501SD |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.180" (4.57mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | 30 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold | Current Rating | 3.2A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
