Samtec, Inc.

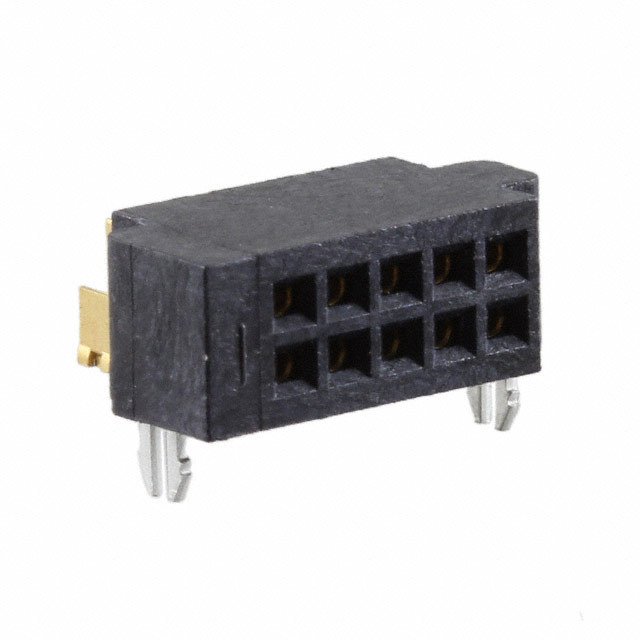

| Part Number | SFMH-105-02-L-D-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECEPT 10POS .50" SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16562 pcs | Data sheet | 1.SFMH-105-02-L-D-LC.pdf2.SFMH-105-02-L-D-LC.pdf3.SFMH-105-02-L-D-LC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Tiger Eye™ SFMH |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | SAM10705 SFMH-105-02-L-D-LC-ND |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.135" (3.43mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
