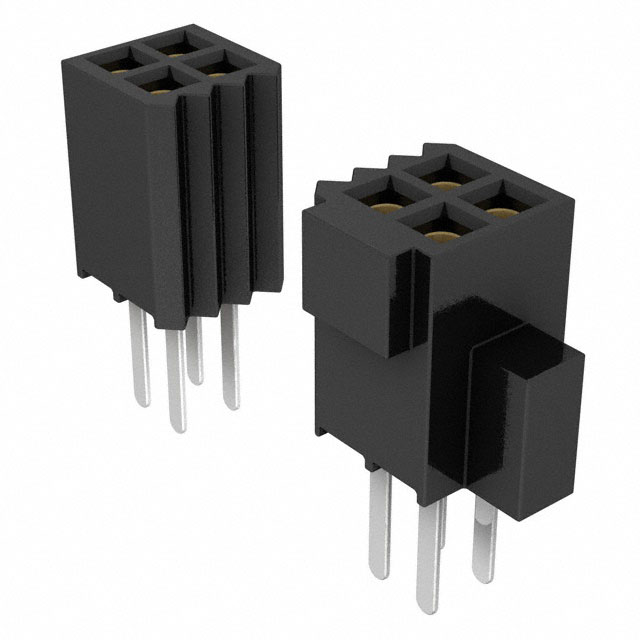

Samtec, Inc.
| Part Number | SFM-135-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050" X .050 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8574 pcs | Data sheet | 1.SFM-135-01-S-D.pdf2.SFM-135-01-S-D.pdf3.SFM-135-01-S-D.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | Tiger Eye™ SFM |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | SAM9129 SFM-135-01-S-D-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 70 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.180" (4.57mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 70 Position Receptacle Connector Through Hole |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
