SEM-140-02-03.0-H-D-A

Samtec, Inc.

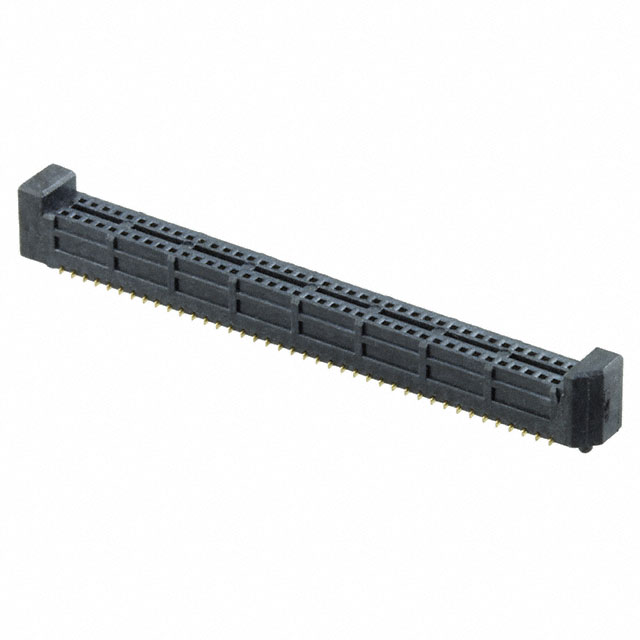

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SEM-140-02-03.0-H-D-A
Manufacturer/Brand:	Samtec, Inc.
Product description	.8MM TIGER EYE MICRO SOCKET
Datasheets:	1.SEM-140-02-03.0-H-D-A.pdf 2.SEM-140-02-03.0-H-D-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7100 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7100 pcs

Reference Price (In US Dollars)

1 pcs: $5.372

10 pcs: $5.191

25 pcs: $5.012

50 pcs: $4.833

100 pcs: $4.654

250 pcs: $4.564

500 pcs: $4.475

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SEM-140-02-03.0-H-D-A

Part Number	SEM-140-02-03.0-H-D-A	Manufacturer	Samtec, Inc.
Description	.8MM TIGER EYE MICRO SOCKET	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7100 pcs	Data sheet	1.SEM-140-02-03.0-H-D-A.pdf 2.SEM-140-02-03.0-H-D-A.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Series	Tiger Eye™ SEM
Row Spacing - Mating	0.125" (3.18mm)	Pitch - Mating	0.031" (0.80mm)
Packaging	Tube	Other Names	SAM11680 SEM-140-02-03.0-H-D-A-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	80
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	6mm, 7mm, 10mm
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.177" (4.50mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	80 Position Receptacle Connector Surface Mount	Current Rating	2.6A per Contact
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Beryllium Copper	Contact Length - Post	-
Contact Finish Thickness - Post	Flash	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	-
