MUSB-05-F-B-SM-A

Samtec, Inc.

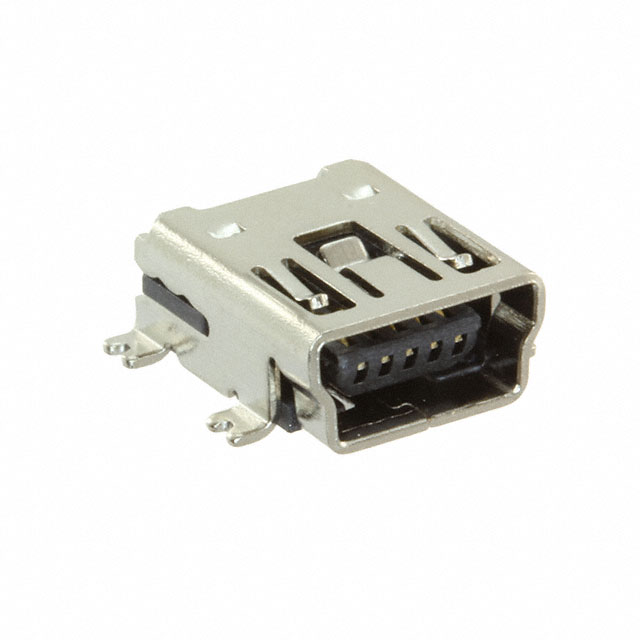

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MUSB-05-F-B-SM-A
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN RECEPT USB MINI B SMD R/A
Datasheets:	1.MUSB-05-F-B-SM-A.pdf 2.MUSB-05-F-B-SM-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	87344 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 87344 pcs

Reference Price (In US Dollars)

1 pcs: $0.368

10 pcs: $0.324

25 pcs: $0.305

50 pcs: $0.292

100 pcs: $0.28

250 pcs: $0.254

500 pcs: $0.229

1000 pcs: $0.203

2500 pcs: $0.184

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.368

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MUSB-05-F-B-SM-A

Part Number	MUSB-05-F-B-SM-A	Manufacturer	Samtec, Inc.
Description	CONN RECEPT USB MINI B SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87344 pcs	Data sheet	1.MUSB-05-F-B-SM-A.pdf 2.MUSB-05-F-B-SM-A.pdf
Voltage - Rated	30V	Termination	Solder
Specifications	USB 2.0	Shielding	Unshielded
Shell/Shielding Material	Copper Alloy	Series	MUSB
Packaging	Tray	Other Names	MUSB-05-F-B-SM-A-ND SAM8840
Operating Temperature	-50°C ~ 85°C	Number of Ports	1
Number of Contacts	5	Mounting Type	Surface Mount, Right Angle
Mounting Feature	Horizontal	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	1500	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	Black	Ingress Protection	-
Gender	Receptacle	Features	Board Guide, Solder Retention
Detailed Description	USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle	Current Rating	-
Contact Finish	Gold	Connector Type	USB - mini B
