MTSW-102-08-L-S-306

Samtec, Inc.

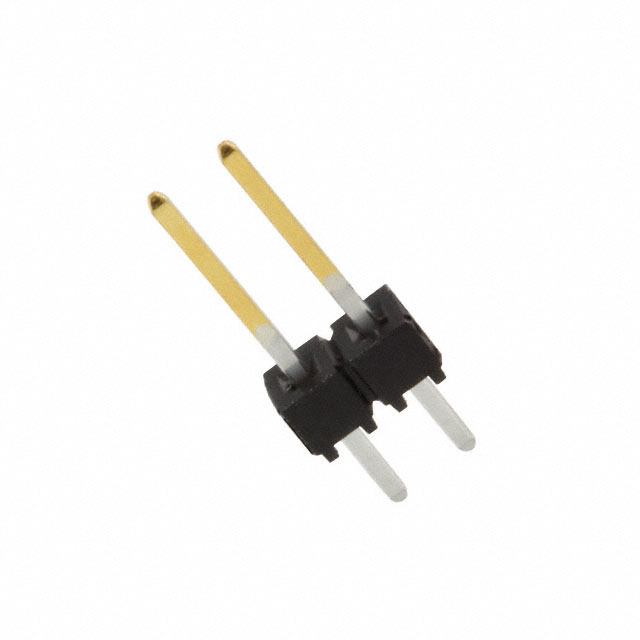

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MTSW-102-08-L-S-306
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 2POS .100" TH
Datasheets:	1.MTSW-102-08-L-S-306.pdf 2.MTSW-102-08-L-S-306.pdf 3.MTSW-102-08-L-S-306.pdf 4.MTSW-102-08-L-S-306.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	375004 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 375004 pcs

Reference Price (In US Dollars)

1 pcs: $0.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.094

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MTSW-102-08-L-S-306

Part Number	MTSW-102-08-L-S-306	Manufacturer	Samtec, Inc.
Description	CONN HEADER 2POS .100" TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	375004 pcs	Data sheet	1.MTSW-102-08-L-S-306.pdf 2.MTSW-102-08-L-S-306.pdf 3.MTSW-102-08-L-S-306.pdf 4.MTSW-102-08-L-S-306.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	Flex Stack, MTSW	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.530" (13.46mm)	Operating Temperature	-55°C ~ 125°C
Number of Rows	1	Number of Positions Loaded	All
Number of Positions	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	-
Mated Stacking Heights	-	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.100" (2.54mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 2 position 0.100" (2.54mm)
Current Rating	3A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.124" (3.15mm)	Contact Length - Mating	0.306" (7.77mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Cuttable	Applications	-
