Samtec, Inc.

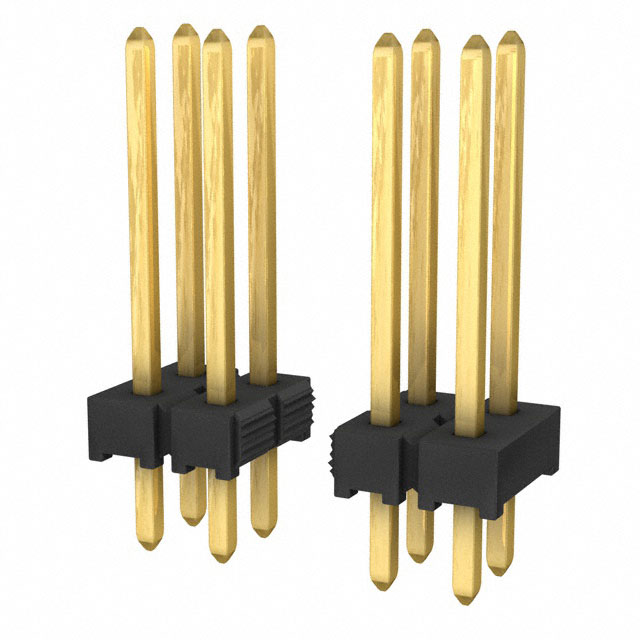

| Part Number | MTMM-108-08-G-D-325 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM TERM STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29656 pcs | Data sheet | 1.MTMM-108-08-G-D-325.pdf2.MTMM-108-08-G-D-325.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | MTMM | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | 0.476" (12.09mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | 0.325" (8.26mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
