MTLW-112-24-S-D-255

Samtec, Inc.

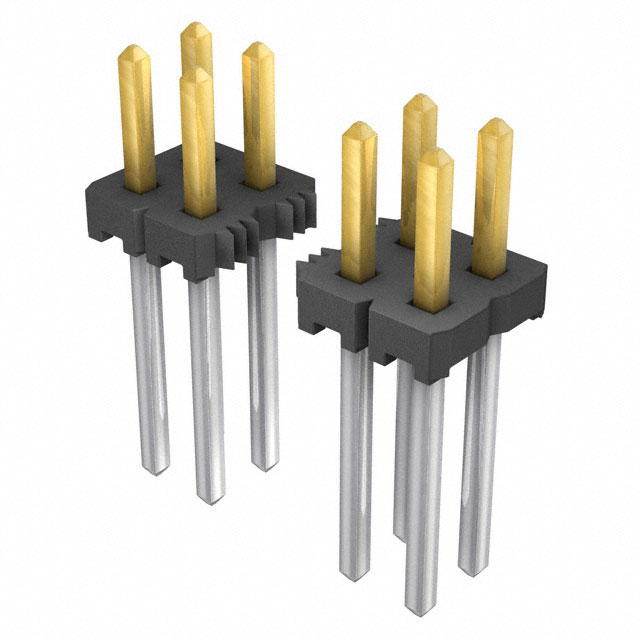

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MTLW-112-24-S-D-255
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 24POS 1.00" DL GOLD
Datasheets:	1.MTLW-112-24-S-D-255.pdf 2.MTLW-112-24-S-D-255.pdf 3.MTLW-112-24-S-D-255.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21410 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21410 pcs

Reference Price (In US Dollars)

1 pcs: $1.835

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.835

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MTLW-112-24-S-D-255

Part Number	MTLW-112-24-S-D-255	Manufacturer	Samtec, Inc.
Description	CONN HEADER 24POS 1.00" DL GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21410 pcs	Data sheet	1.MTLW-112-24-S-D-255.pdf 2.MTLW-112-24-S-D-255.pdf 3.MTLW-112-24-S-D-255.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	Flex Stack, MTLW	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.480" (12.19mm)	Operating Temperature	-55°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	24	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.060" (1.52mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 24 position 0.100" (2.54mm)
Current Rating	5.2A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.165" (4.19mm)	Contact Length - Mating	0.255" (6.48mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
