Samtec, Inc.

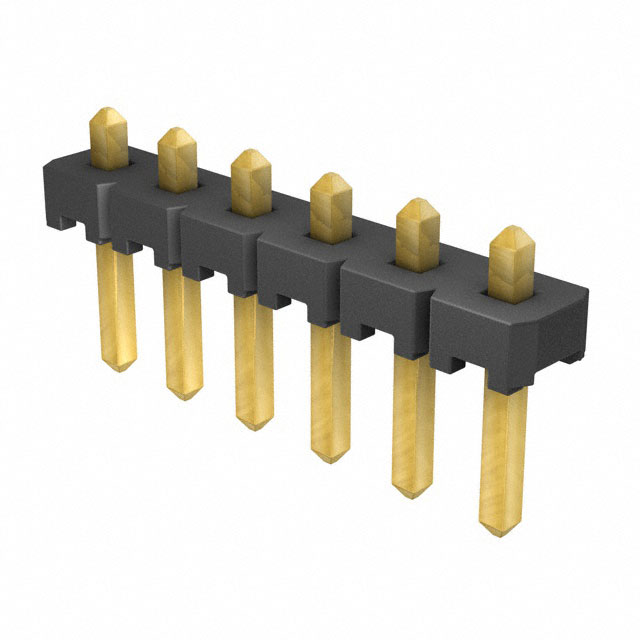

| Part Number | MTLW-106-06-G-S-150 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 6POS 1.00" SGL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69153 pcs | Data sheet | 1.MTLW-106-06-G-S-150.pdf2.MTLW-106-06-G-S-150.pdf3.MTLW-106-06-G-S-150.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | Flex Stack, MTLW | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | 0.300" (7.62mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.060" (1.52mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) | Current Rating | 5.2A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Length - Mating | 0.150" (3.81mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
