MTLW-105-09-L-D-480

Samtec, Inc.

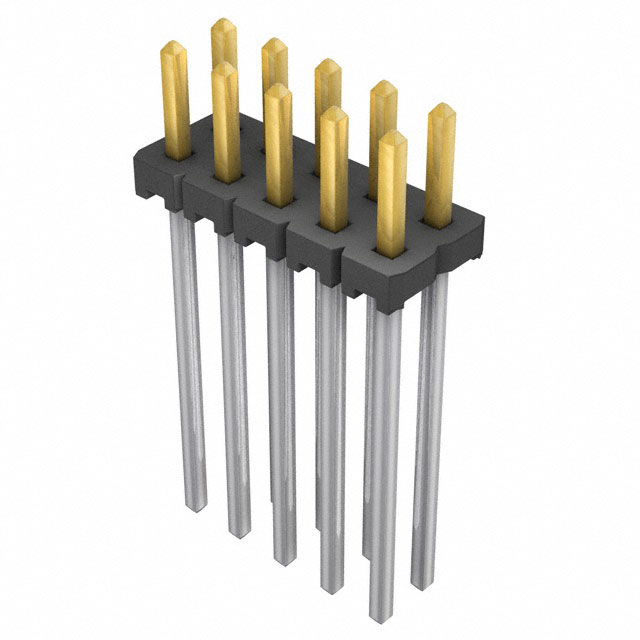

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MTLW-105-09-L-D-480
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 10POS 1.00" DL GOLD
Datasheets:	1.MTLW-105-09-L-D-480.pdf 2.MTLW-105-09-L-D-480.pdf 3.MTLW-105-09-L-D-480.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	71535 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 71535 pcs

Reference Price (In US Dollars)

1 pcs: $0.553

10 pcs: $0.50

100 pcs: $0.429

500 pcs: $0.357

1000 pcs: $0.306

5000 pcs: $0.271

10000 pcs: $0.265

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.553

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MTLW-105-09-L-D-480

Part Number	MTLW-105-09-L-D-480	Manufacturer	Samtec, Inc.
Description	CONN HEADER 10POS 1.00" DL GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	71535 pcs	Data sheet	1.MTLW-105-09-L-D-480.pdf 2.MTLW-105-09-L-D-480.pdf 3.MTLW-105-09-L-D-480.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	Flex Stack, MTLW	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.730" (18.54mm)	Other Names	MTLW-105-09-L-D-480-ND SAM8951
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.060" (1.52mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 10 position 0.100" (2.54mm)	Current Rating	5.2A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.190" (4.83mm)
Contact Length - Mating	0.480" (12.19mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
