Samtec, Inc.

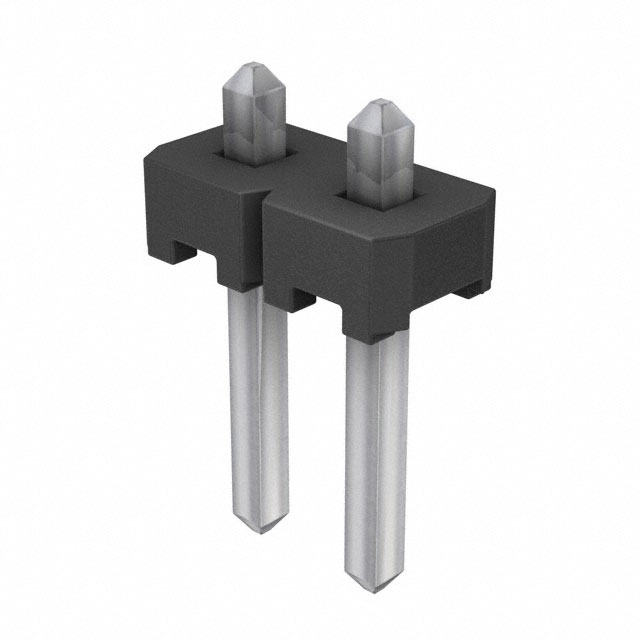

| Part Number | MTLW-102-05-T-S-190 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 2POS 1.00" SGL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 316306 pcs | Data sheet | 1.MTLW-102-05-T-S-190.pdf2.MTLW-102-05-T-S-190.pdf3.MTLW-102-05-T-S-190.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | Flex Stack, MTLW | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | 0.335" (8.51mm) | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.060" (1.52mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) |
| Current Rating | 5.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.085" (2.16mm) | Contact Length - Mating | 0.190" (4.83mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
