Samtec, Inc.

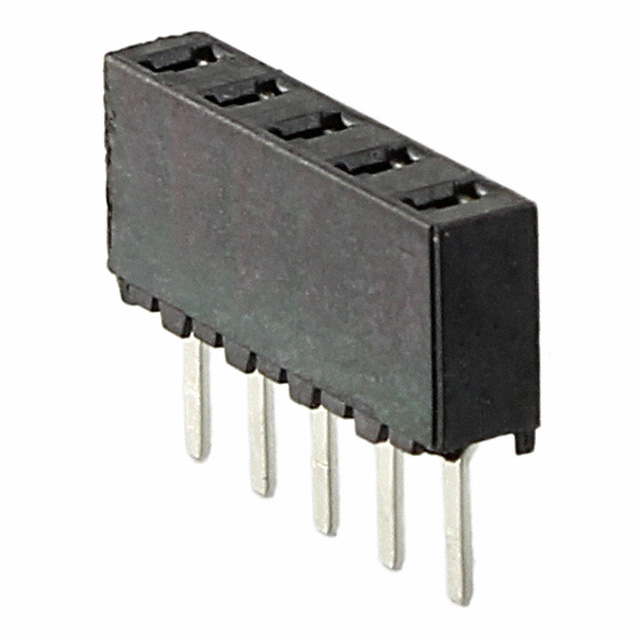

| Part Number | MMS-105-01-T-SV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 2MM 5POS SGL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48277 pcs | Data sheet | 1.MMS-105-01-T-SV.pdf2.MMS-105-01-T-SV.pdf3.MMS-105-01-T-SV.pdf4.MMS-105-01-T-SV.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | MMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | SAM1234-05 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.175" (4.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 5 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin |
| Current Rating | 3.9A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
