Samtec, Inc.

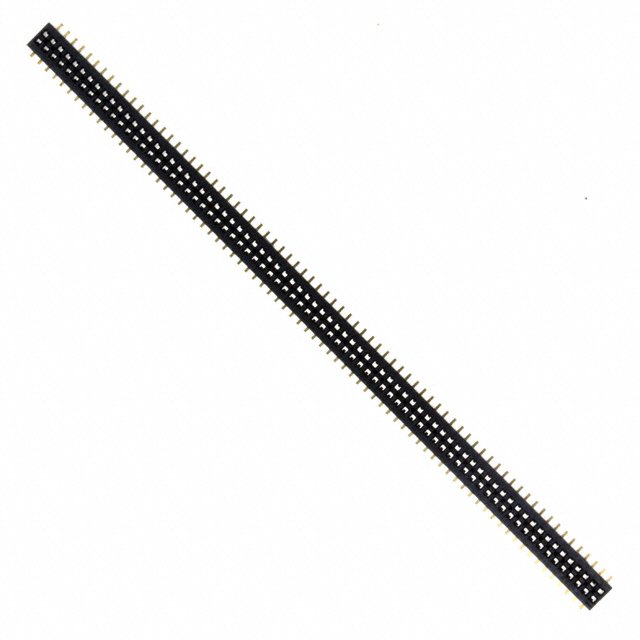

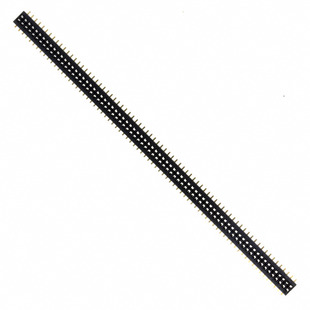

| Part Number | MLE-175-01-G-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECEPT 150POS 1MM DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7626 pcs | Data sheet | 1.MLE-175-01-G-DV.pdf2.MLE-175-01-G-DV.pdf3.MLE-175-01-G-DV.pdf4.MLE-175-01-G-DV.pdf5.MLE-175-01-G-DV.pdf |
| Voltage Rating | 310VAC | Termination | Solder |
| Style | Board to Board | Series | MLE |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | SAM1132-75 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 150 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.130" (3.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 150 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold | Current Rating | 2.9A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
