Samtec, Inc.
| Part Number | MLE-150-01-G-DV-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCK STRIP 100POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8182 pcs | Data sheet | 1.MLE-150-01-G-DV-A.pdf2.MLE-150-01-G-DV-A.pdf3.MLE-150-01-G-DV-A.pdf4.MLE-150-01-G-DV-A.pdf5.MLE-150-01-G-DV-A.pdf |
| Voltage Rating | 310VAC | Termination | Solder |
| Style | Board to Board | Series | MLE |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | MLE-150-01-G-DV-A-ND SAM12722 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 100 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.130" (3.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |

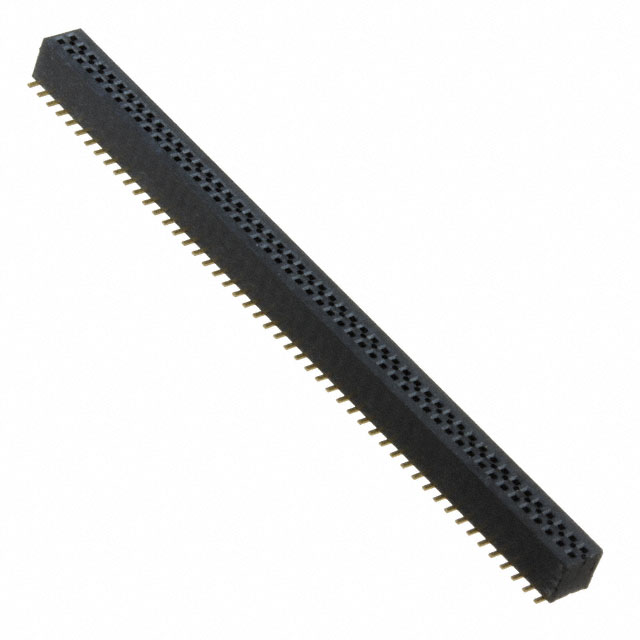

| Detailed Description | 100 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold | Current Rating | 2.9A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
