IPT1-120-01-S-D

Samtec, Inc.Samtec, Inc.

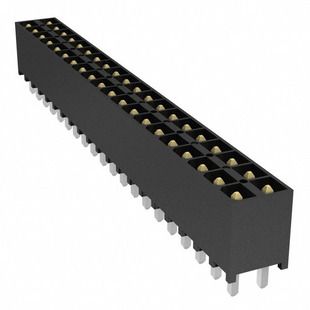

IPT1-120-01-S-D Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: IPT1-120-01-S-D
Manufacturer/Brand: Samtec, Inc.
Product description CONN PLUG .100" 40POS DUAL PCB
Datasheets: 1.IPT1-120-01-S-D.pdf2.IPT1-120-01-S-D.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 13476 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 13476 pcs
Reference Price (In US Dollars)
1 pcs
$2.464
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.464

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of IPT1-120-01-S-D

Part Number IPT1-120-01-S-D Manufacturer Samtec, Inc.
Description CONN PLUG .100" 40POS DUAL PCB Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 13476 pcs Data sheet 1.IPT1-120-01-S-D.pdf2.IPT1-120-01-S-D.pdf
Voltage Rating 775VAC, 1095VDC Termination Solder
Style Board to Board Shrouding Shrouded - 4 Wall
Series Mini Mate® IPT1 Row Spacing - Mating 0.100" (2.54mm)
Pitch - Mating 0.100" (2.54mm) Packaging Tube
Overall Contact Length 0.335" (8.51mm) Other Names SAM8109
Operating Temperature -55°C ~ 125°C Number of Rows 2
Number of Positions Loaded All Number of Positions 40
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 3 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Liquid Crystal Polymer (LCP) Insulation Height 0.250" (6.35mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description Connector Header Through Hole 40 position 0.100" (2.54mm) Current Rating 2.3A per Contact
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.085" (2.16mm)
Contact Length - Mating 0.155" (3.94mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating 30.0µin (0.76µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header
Applications -
