Samtec, Inc.

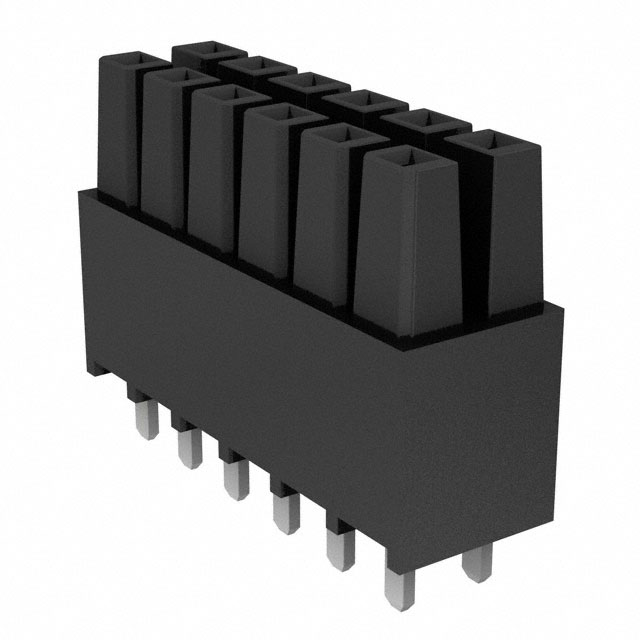

| Part Number | IPS1-106-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 DOUBLE ROW SHROUDED SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26240 pcs | Data sheet | 1.IPS1-106-01-S-D.pdf2.IPS1-106-01-S-D.pdf3.IPS1-106-01-S-D.pdf |
| Voltage Rating | 775VAC, 1095VDC | Termination | Solder |
| Style | Board to Board | Series | Mini Mate® IPS1 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | IPS1-106-01-S-D-ND SAM11437 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 12 Position Receptacle Connector Through Hole |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
