IPL1-110-01-SM-D-RA-K

Samtec, Inc.

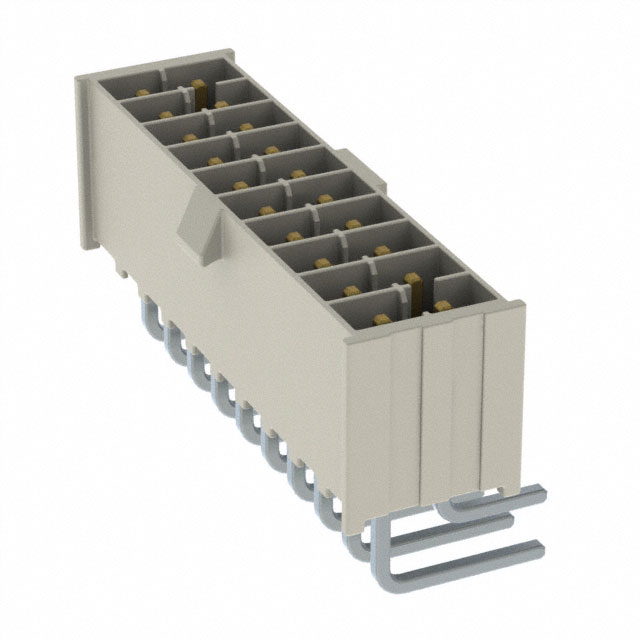

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPL1-110-01-SM-D-RA-K
Manufacturer/Brand:	Samtec, Inc.
Product description	.100 TERMINAL ASSEMBLY
Datasheets:	1.IPL1-110-01-SM-D-RA-K.pdf 2.IPL1-110-01-SM-D-RA-K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13120 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13120 pcs

Reference Price (In US Dollars)

1 pcs: $2.359

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.359

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPL1-110-01-SM-D-RA-K

Part Number	IPL1-110-01-SM-D-RA-K	Manufacturer	Samtec, Inc.
Description	.100 TERMINAL ASSEMBLY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13120 pcs	Data sheet	1.IPL1-110-01-SM-D-RA-K.pdf 2.IPL1-110-01-SM-D-RA-K.pdf
Voltage Rating	675VAC, 954VDC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini Mate® IPL1	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Operating Temperature	-55°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	20	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.290" (7.37mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.085" (2.16mm)	Contact Length - Mating	0.215" (5.46mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
