IPL1-102-01-H-D-K

Samtec, Inc.

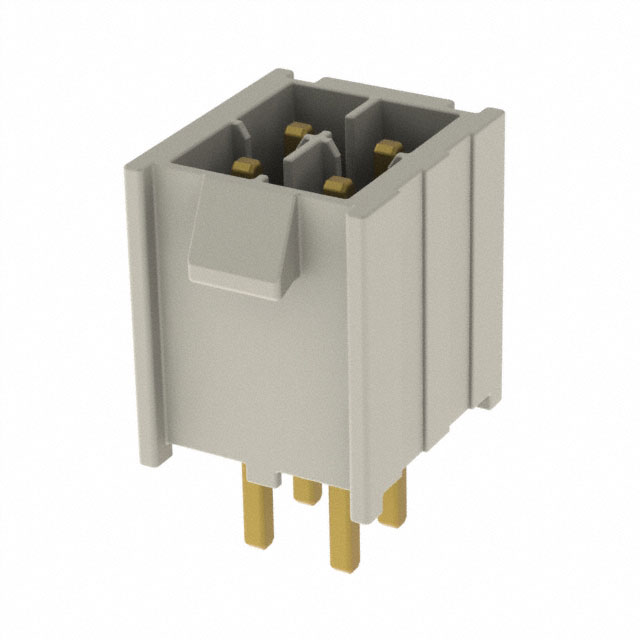

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPL1-102-01-H-D-K
Manufacturer/Brand:	Samtec, Inc.
Product description	.100 TERMINAL ASSEMBLY
Datasheets:	1.IPL1-102-01-H-D-K.pdf 2.IPL1-102-01-H-D-K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16253 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16253 pcs

Reference Price (In US Dollars)

1 pcs: $1.889

10 pcs: $1.812

100 pcs: $1.51

500 pcs: $1.283

1000 pcs: $1.095

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.889

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPL1-102-01-H-D-K

Part Number	IPL1-102-01-H-D-K	Manufacturer	Samtec, Inc.
Description	.100 TERMINAL ASSEMBLY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16253 pcs	Data sheet	1.IPL1-102-01-H-D-K.pdf 2.IPL1-102-01-H-D-K.pdf
Voltage Rating	675VAC, 954VDC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini Mate® IPL1	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	IPL1-102-01-H-D-K-ND SAM11418
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.320" (8.13mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.215" (5.46mm)	Contact Finish Thickness - Post	3.00µin (0.076µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
