IPBT-110-H1-T-D-RA-K

Samtec, Inc.

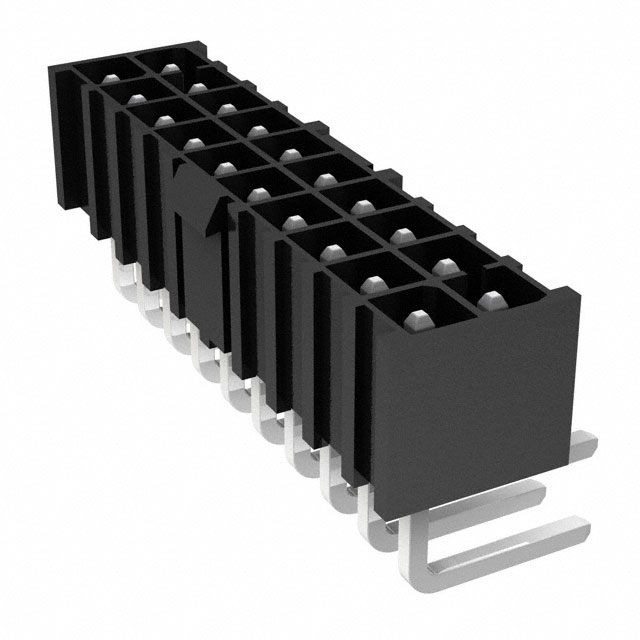

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPBT-110-H1-T-D-RA-K
Manufacturer/Brand:	Samtec, Inc.
Product description	.165 DOUBLE ROW TERMINAL ASSY
Datasheets:	1.IPBT-110-H1-T-D-RA-K.pdf 2.IPBT-110-H1-T-D-RA-K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21977 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21977 pcs

Reference Price (In US Dollars)

1 pcs: $1.553

13 pcs: $1.491

104 pcs: $1.243

507 pcs: $1.056

1001 pcs: $0.901

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.553

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPBT-110-H1-T-D-RA-K

Part Number	IPBT-110-H1-T-D-RA-K	Manufacturer	Samtec, Inc.
Description	.165 DOUBLE ROW TERMINAL ASSY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21977 pcs	Data sheet	1.IPBT-110-H1-T-D-RA-K.pdf 2.IPBT-110-H1-T-D-RA-K.pdf
Voltage Rating	400VAC, 565VDC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Power Mate® IPBT	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tube
Overall Contact Length	-	Other Names	SAM9569
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.424" (10.77mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.147" (3.73mm)
Contact Length - Mating	0.260" (6.60mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
