HSEC8-160-01-SM-DV-A

Samtec, Inc.

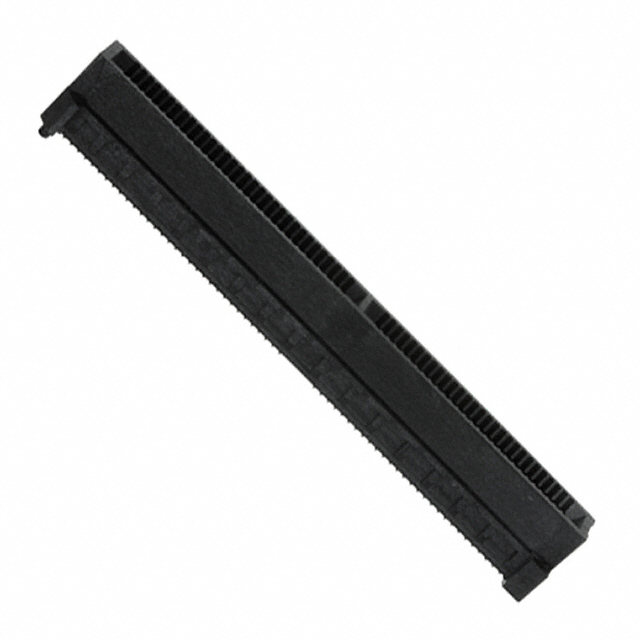

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HSEC8-160-01-SM-DV-A
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN EDGE DUAL FMALE 120POS .031
Datasheets:	1.HSEC8-160-01-SM-DV-A.pdf 2.HSEC8-160-01-SM-DV-A.pdf 3.HSEC8-160-01-SM-DV-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12855 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12855 pcs

Reference Price (In US Dollars)

1 pcs: $2.446

10 pcs: $2.343

42 pcs: $2.139

84 pcs: $2.037

126 pcs: $1.936

252 pcs: $1.732

504 pcs: $1.63

1008 pcs: $1.426

2520 pcs: $1.355

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.446

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HSEC8-160-01-SM-DV-A

Part Number	HSEC8-160-01-SM-DV-A	Manufacturer	Samtec, Inc.
Description	CONN EDGE DUAL FMALE 120POS .031	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12855 pcs	Data sheet	1.HSEC8-160-01-SM-DV-A.pdf 2.HSEC8-160-01-SM-DV-A.pdf 3.HSEC8-160-01-SM-DV-A.pdf
Termination	Solder	Series	Edge Rate™ HSEC8
Read Out	Dual	Pitch	0.031" (0.80mm)
Packaging	Tube	Other Names	HSEC816001SMDVA SAM8084
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions/Bay/Row	60	Number of Positions	120
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	Liquid Crystal Polymer (LCP)	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gender	Female
Flange Feature	-	Features	Board Guide
Contact Type	Cantilever	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Color	Black	Card Type	Non Specified - Dual Edge
Card Thickness	0.062" (1.57mm)
