Samtec, Inc.

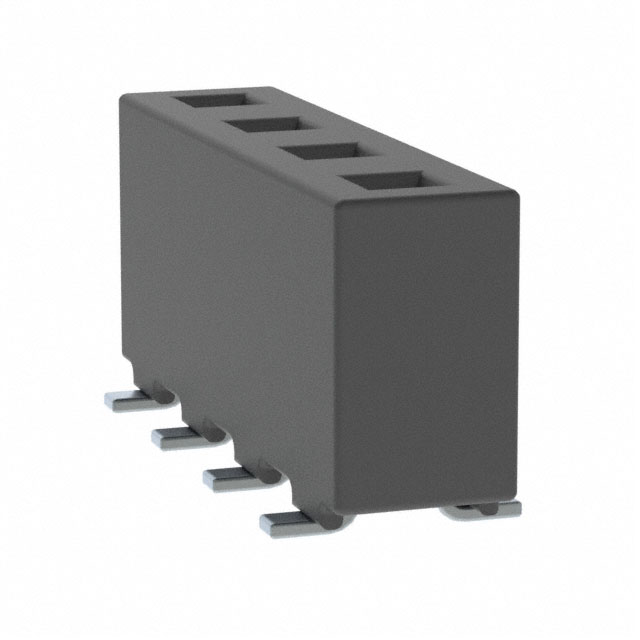

| Part Number | HPF-04-02-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCK STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31408 pcs | Data sheet | 1.HPF-04-02-T-S.pdf2.HPF-04-02-T-S.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | HPF |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Tube | Other Names | SAM9493 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.351" (8.92mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector Surface Mount |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
