Samtec, Inc.

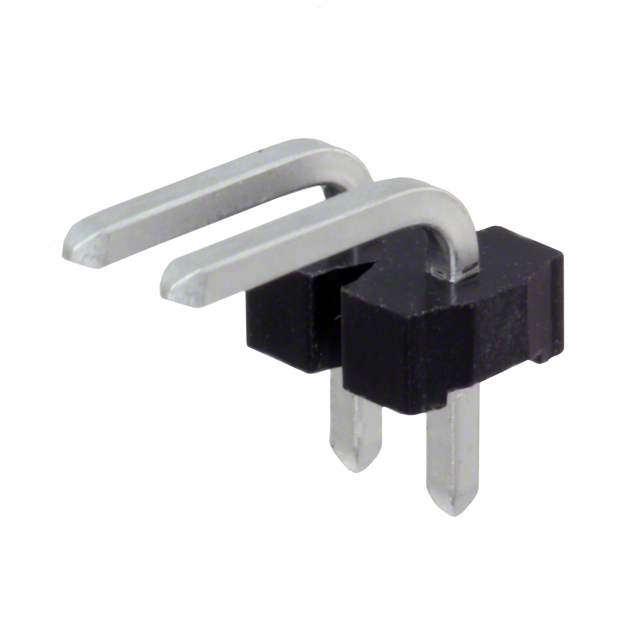

| Part Number | FWJ-02-02-T-S-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .045" SQUARE POST STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177073 pcs | Data sheet | 1.FWJ-02-02-T-S-RA.pdf2.FWJ-02-02-T-S-RA.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | FWJ | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
| Overall Contact Length | 0.800" (20.32mm) | Other Names | SAM9465 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.250" (6.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.156" (3.96mm) | Current Rating | 6.7A per contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.175" (4.45mm) |
| Contact Length - Mating | 0.500" (12.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
