Samtec, Inc.

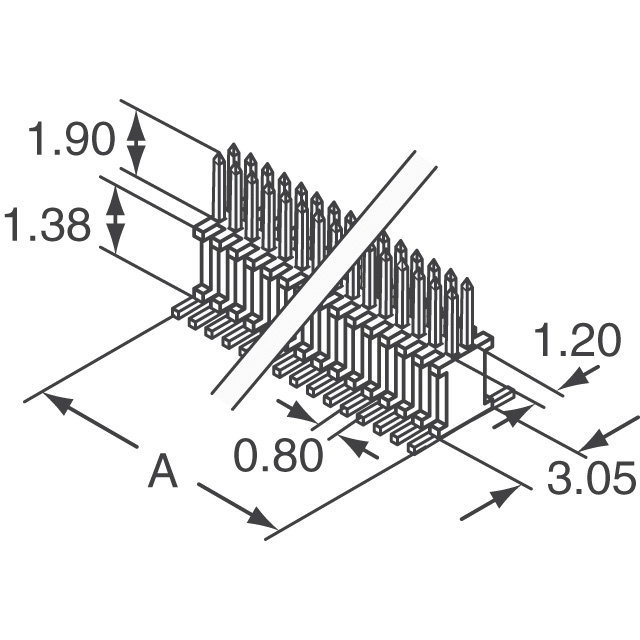

| Part Number | FTE-188-01-G-DH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADR 176PS .8MM DL R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2291 pcs | Data sheet | 1.FTE-188-01-G-DH.pdf2.FTE-188-01-G-DH.pdf3.FTE-188-01-G-DH.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | FTE | Row Spacing - Mating | 0.047" (1.20mm) |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | SAM1143-88 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 176 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.120" (3.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 176 position 0.031" (0.80mm) |
| Current Rating | 2.7A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.075" (1.90mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
