Samtec, Inc.

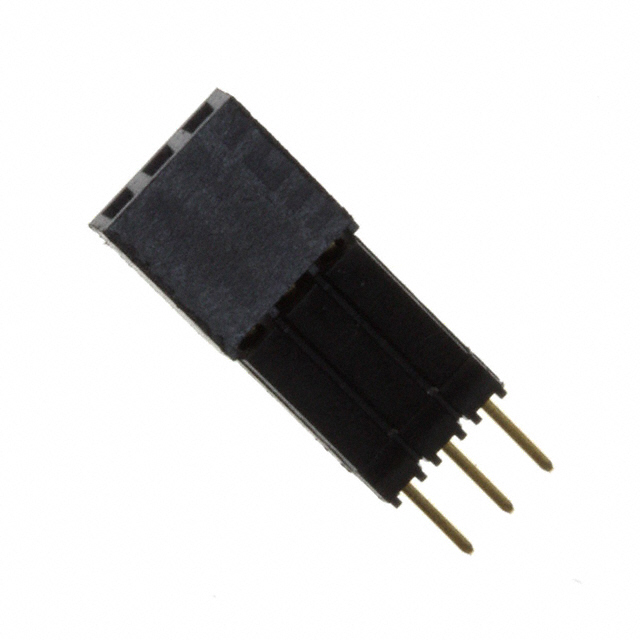

| Part Number | ESQ-103-44-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 3POS .1" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57231 pcs | Data sheet | 1.ESQ-103-44-G-S.pdf2.ESQ-103-44-G-S.pdf3.ESQ-103-44-G-S.pdf |
| Voltage Rating | 550VAC | Termination | Solder |
| Style | Board to Board | Series | ESQ |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | Q2891343A |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.735" (18.67mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 5.7A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.180" (4.57mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Elevated Socket | Applications | - |
