ESHF-120-01-L-D-SM-LC

Samtec, Inc.

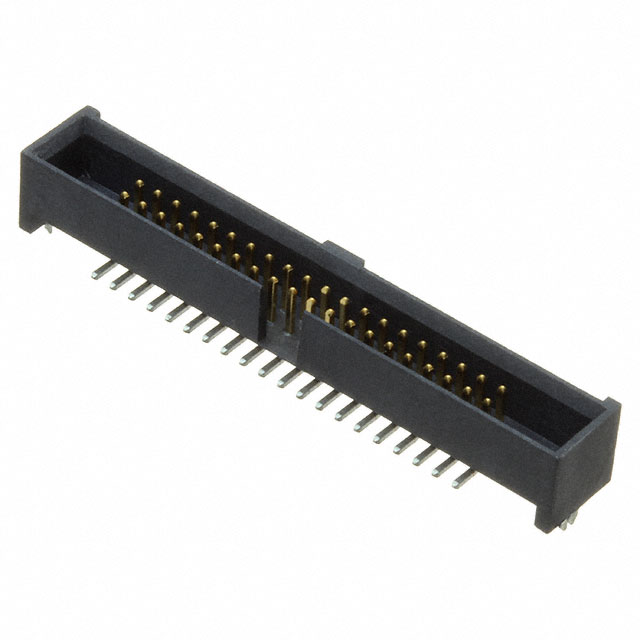

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESHF-120-01-L-D-SM-LC
Manufacturer/Brand:	Samtec, Inc.
Product description	.050 X .050 EXTRA LENGTH SHROUDE
Datasheets:	1.ESHF-120-01-L-D-SM-LC.pdf 2.ESHF-120-01-L-D-SM-LC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15905 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15905 pcs

Reference Price (In US Dollars)

1 pcs: $1.987

10 pcs: $1.907

100 pcs: $1.589

500 pcs: $1.351

1000 pcs: $1.152

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.987

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESHF-120-01-L-D-SM-LC

Part Number	ESHF-120-01-L-D-SM-LC	Manufacturer	Samtec, Inc.
Description	.050 X .050 EXTRA LENGTH SHROUDE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15905 pcs	Data sheet	1.ESHF-120-01-L-D-SM-LC.pdf 2.ESHF-120-01-L-D-SM-LC.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ESHF	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	ESHF-120-01-L-D-SM-LC-ND SAM11068
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.215" (5.45mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock, Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 40 position 0.050" (1.27mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.120" (3.05mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
