Samtec, Inc.

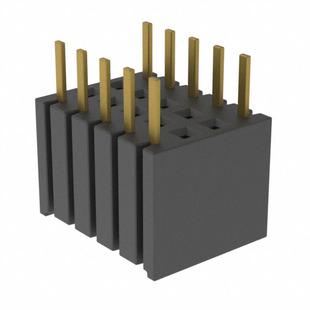

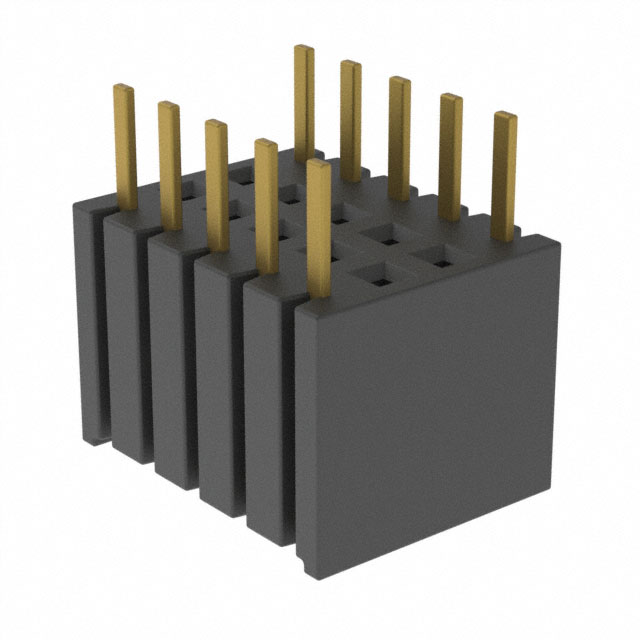

| Part Number | BSW-105-04-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | BOTTOM MOUNT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41798 pcs | Data sheet | 1.BSW-105-04-G-D.pdf2.BSW-105-04-G-D.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | BSW |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | SAM9187 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole, Bottom Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyethylene Terephthalate (PET), Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle, Breakaway Connector Through Hole, Bottom Mount |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.165" (4.19mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Breakaway |
| Applications | - |
