Samtec, Inc.
| Part Number | BNC7T-P-C-GN-ST-CA3 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN BNC PLUG STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12937 pcs | Data sheet | BNC7T-P-C-GN-ST-CA3.pdf |
| Voltage Rating | 500V | Shield Termination | Crimp |
| Series | TRUE75™ BNC7T | Packaging | - |
| Other Names | BNC7T-P-C-GN-ST-CA3-ND SAM10921 |
Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |

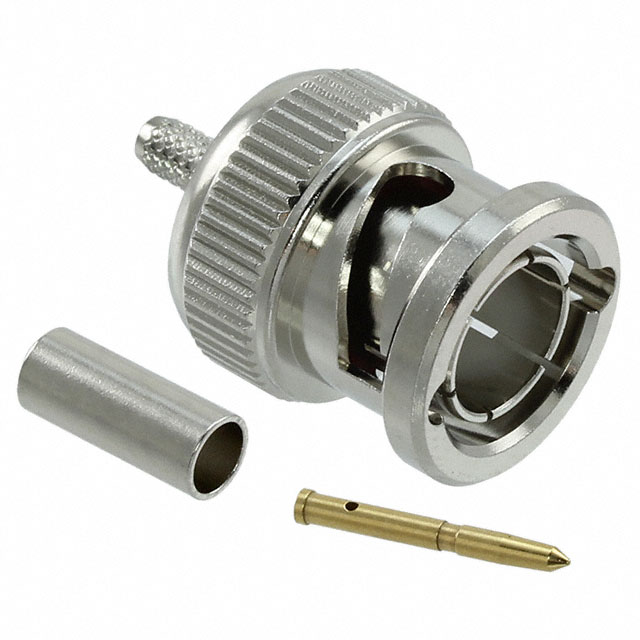

| Detailed Description | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | RG-179 | Body Material | Brass |
| Body Finish | Nickel |
