Samtec, Inc.
| Part Number | BNC7T-J-P-GN-ST-EM2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN BNC JACK STR 75OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10031 pcs | Data sheet | BNC7T-J-P-GN-ST-EM2.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | TRUE75™ BNC7T | Packaging | - |
| Other Names | BNC7T-J-P-GN-ST-EM2-ND SAM10917 |
Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Board Edge, End Launch; Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

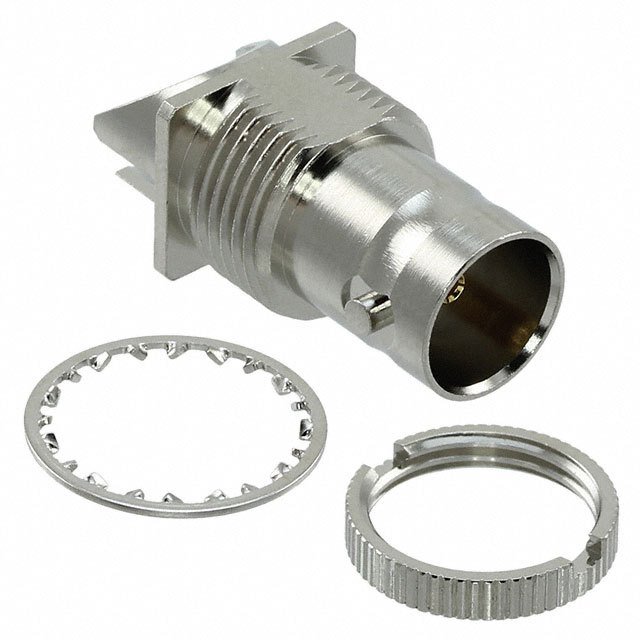

| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 12GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Board Edge, End Launch; Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Copper Alloy |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
