Samtec, Inc.

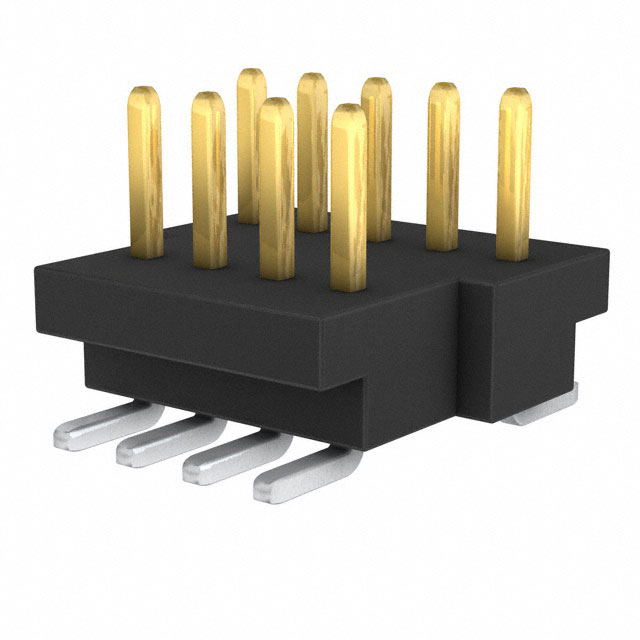

| Part Number | BKT-109-01-F-V | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HDR 9POS 1MM SMD GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53443 pcs | Data sheet | 1.BKT-109-01-F-V.pdf2.BKT-109-01-F-V.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BKT | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | Q8395319 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 4.14mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.064" (1.63mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 9 position 0.039" (1.00mm) | Current Rating | 2.8A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.065" (1.65mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
