Samtec, Inc.

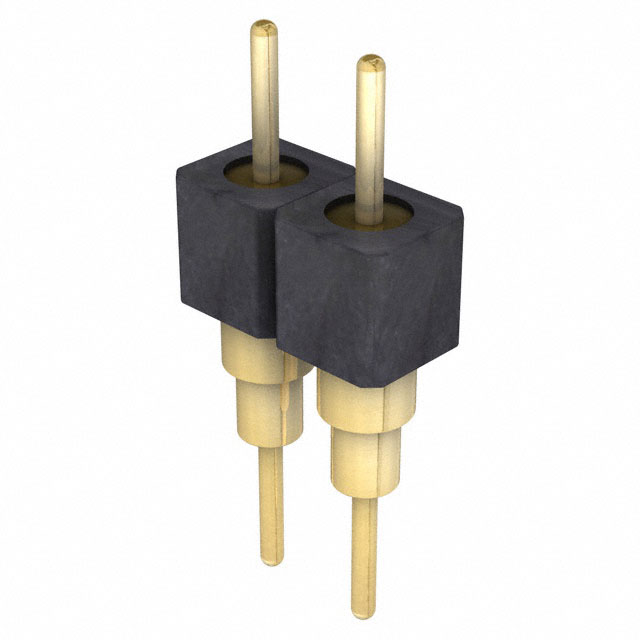

| Part Number | BBS-102-G-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 2POS .100 PCB GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40212 pcs | Data sheet | 1.BBS-102-G-A.pdf2.BBS-102-G-A.pdf3.BBS-102-G-A.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BBS | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.460" (11.68mm) | Other Names | SAM1004-02 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.211" (5.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Nickel | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
