Samtec, Inc.

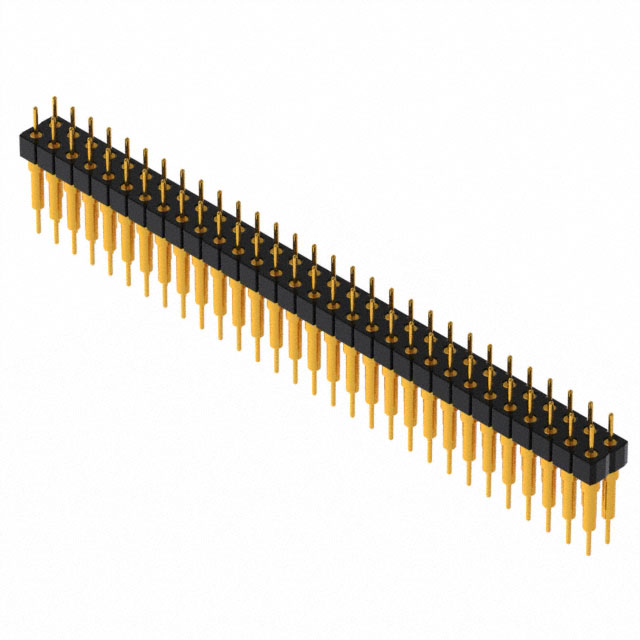

| Part Number | BBD-130-G-B | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | INTERCONNECT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4901 pcs | Data sheet | 1.BBD-130-G-B.pdf2.BBD-130-G-B.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BBD | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | 0.585" (14.86mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 60 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
