VN820B5-E

STMicroelectronics

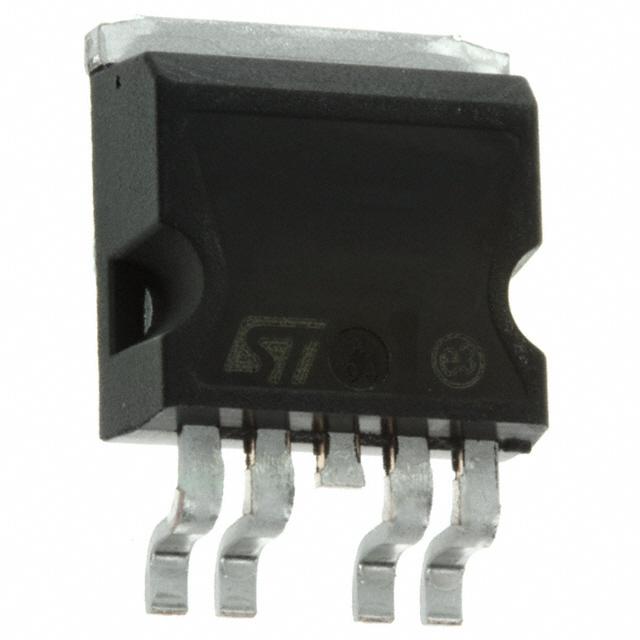

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VN820B5-E
Manufacturer/Brand:	STMicroelectronics
Product description	IC DRIVER HIGH SIDE 9A P2PAK
Datasheets:	VN820B5-E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66306 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 66306 pcs

Reference Price (In US Dollars)

800 pcs: $0.545

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.545

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VN820B5-E

Part Number	VN820B5-E	Manufacturer	STMicroelectronics
Description	IC DRIVER HIGH SIDE 9A P2PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66306 pcs	Data sheet	VN820B5-E.pdf
Voltage - Supply (Vcc/Vdd)	Not Required	Voltage - Load	5.5 V ~ 36 V
Switch Type	General Purpose	Supplier Device Package	P2PAK
Series	-	Rds On (Typ)	40 mOhm (Max)
Ratio - Input:Output	1:1	Packaging	Tube
Package / Case	P²PAK (4 Leads + Tab)	Output Type	N-Channel
Output Configuration	High Side	Operating Temperature	-40°C ~ 150°C (TJ)
Number of Outputs	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	On/Off
Input Type	Non-Inverting	Features	Auto Restart, Status Flag
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage	Current - Output (Max)	9A
Base Part Number	VN820
