TM8050H-8D3-TR

STMicroelectronics

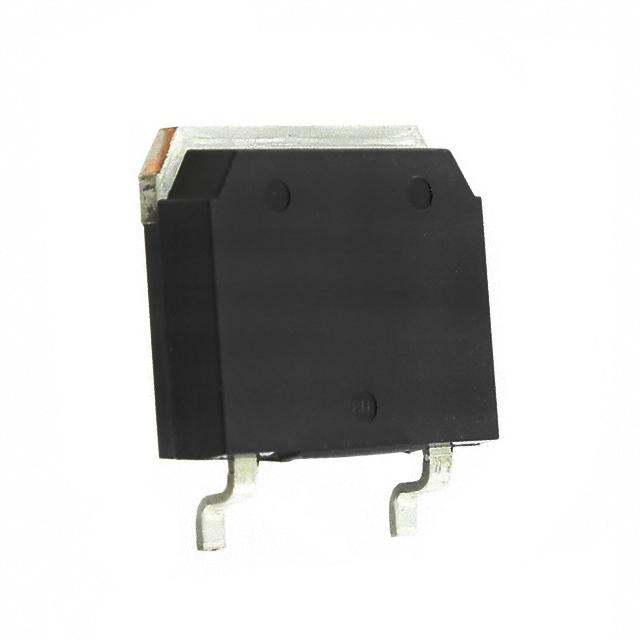

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TM8050H-8D3-TR
Manufacturer/Brand:	STMicroelectronics
Product description	80 A HIGH TEMPERATURE THYRISTOR
Datasheets:	1.TM8050H-8D3-TR.pdf 2.TM8050H-8D3-TR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14437 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14437 pcs

Reference Price (In US Dollars)

1 pcs: $2.171

10 pcs: $1.949

100 pcs: $1.597

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.171

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TM8050H-8D3-TR

Part Number	TM8050H-8D3-TR	Manufacturer	STMicroelectronics
Description	80 A HIGH TEMPERATURE THYRISTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14437 pcs	Data sheet	1.TM8050H-8D3-TR.pdf 2.TM8050H-8D3-TR.pdf
Voltage - On State (Vtm) (Max)	1.55V	Voltage - Off State	800V
Voltage - Gate Trigger (Vgt) (Max)	1.5V	Supplier Device Package	D3Pak
Series	-	SCR Type	Standard Recovery
Packaging	Cut Tape (CT)	Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Other Names	497-16450-1	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	SCR 800V 80A Standard Recovery Surface Mount D3Pak	Current - On State (It (RMS)) (Max)	80A
Current - On State (It (AV)) (Max)	50A	Current - Off State (Max)	20µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	670A, 731A	Current - Hold (Ih) (Max)	100mA
Current - Gate Trigger (Igt) (Max)	50mA
