TDA7560

STMicroelectronics

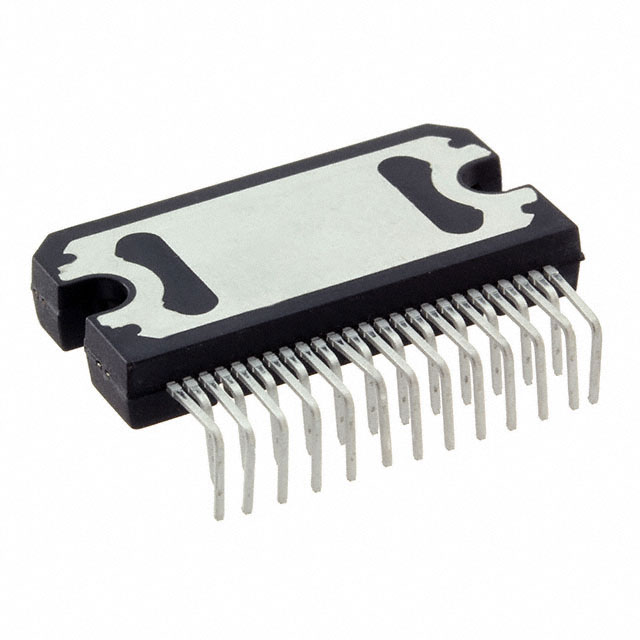

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TDA7560
Manufacturer/Brand:	STMicroelectronics
Product description	IC AMP AUDIO PWR 80W 25FLEXIWATT
Datasheets:	TDA7560.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12654 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12654 pcs

Reference Price (In US Dollars)

357 pcs: $2.954

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.954

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TDA7560

Part Number	TDA7560	Manufacturer	STMicroelectronics
Description	IC AMP AUDIO PWR 80W 25FLEXIWATT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12654 pcs	Data sheet	TDA7560.pdf
Voltage - Supply	8 V ~ 18 V	Type	Class AB
Supplier Device Package	25-Flexiwatt (Vertical)	Series	-
Packaging	Tube	Package / Case	25-Flexiwatt (Formed Leads)
Output Type	4-Channel (Quad)	Other Names	497-2181-5
Operating Temperature	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Max Output Power x Channels @ Load	80W x 4 @ 2 Ohm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Mute, Short-Circuit and Thermal Protection, Standby
Detailed Description	Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)	Base Part Number	TDA7560
